16-bit dsPIC RISC microcontroller featuring 20MHz clock speed and 12KB FLASH memory. Includes 512B RAM, 20 programmable I/Os, and supports I2C, SPI, UART, and USART interfaces. Equipped with 3 timers/counters, internal oscillator, and peripherals like PWM, WDT, POR, and Brown-out Detect/Reset. Offered in a 28-pin PDIP through-hole package, operating from 3V to 5.5V with a maximum power dissipation of 1W. Suitable for applications requiring robust processing and a wide operating temperature range of -40°C to 125°C.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F2010-20E/SP technical specifications.
General
| Package/Case | PDIP |
| Core Architecture | dsPIC |
| Data Bus Width | 16b |
| Density | 12KB |
| Frequency | 20MHz |
| Interface | I2C, SPI, UART, USART |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 12KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of I/Os | 20 |
| Number of Programmable I/O | 20 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | dsPIC™ 30F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip DSPIC30F2010-20E/SP Datasheet
Download the complete datasheet for Microchip DSPIC30F2010-20E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

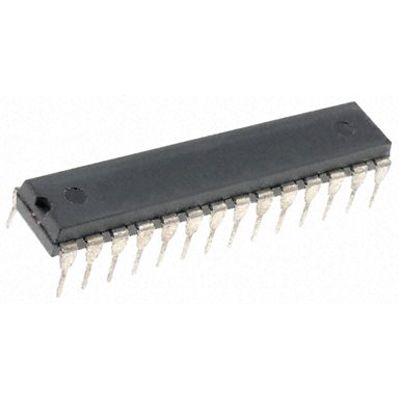

Product Images
