16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory microcontroller offers 12KB of program memory and 1KB of RAM. Integrated peripherals include I2C, SPI, UART, and USART interfaces, along with 3 timers/counters and a watchdog timer. The component is housed in a 18-pin PDIP package for through-hole mounting, with an operating temperature range of -40°C to 125°C and a supply voltage range of 3V to 5.5V.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F2011-20E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2011-20E/P Datasheet
Download the complete datasheet for Microchip DSPIC30F2011-20E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

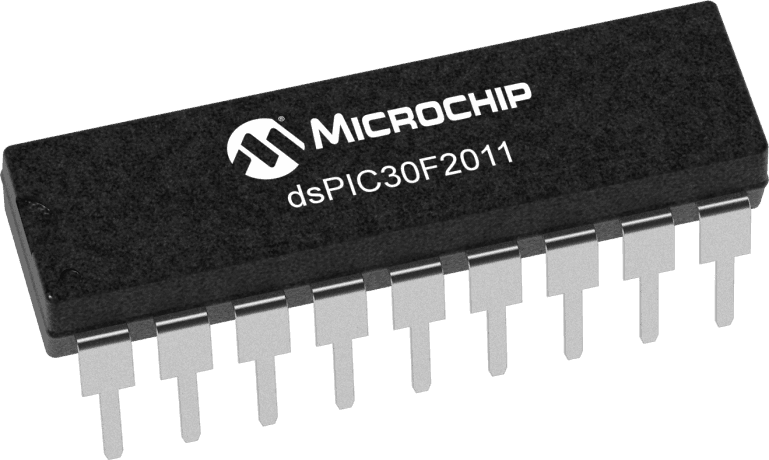

Product Images
