16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory microcontroller offers 12KB of program memory and 1KB of RAM. It supports I2C, SPI, and UART interfaces, with 12 programmable I/O pins and 8 analog input channels across a single 10-bit A/D converter. Packaged in an 18-pin PDIP, this through-hole component operates from 2.5V to 5.5V and includes peripherals like PWM and a watchdog timer.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F2011-20I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Frequency
20MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
0.92inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
16
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2011-20I/P Datasheet
Download the complete datasheet for Microchip DSPIC30F2011-20I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

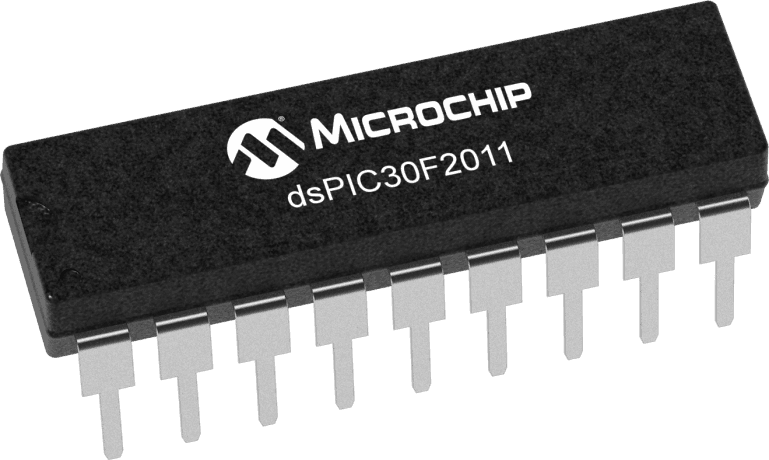

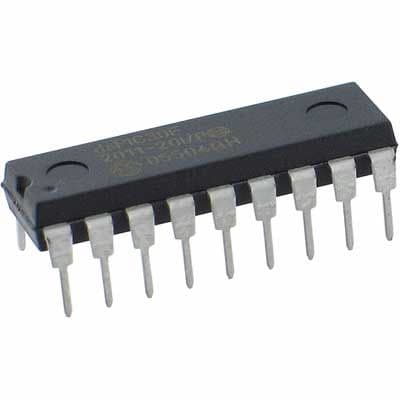

Product Images
