Microchip
DSPIC30F2011T-20I/SO
16-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SOIC-18
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2011T-20I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2011T-20I/SO Datasheet
Download the complete datasheet for Microchip DSPIC30F2011T-20I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

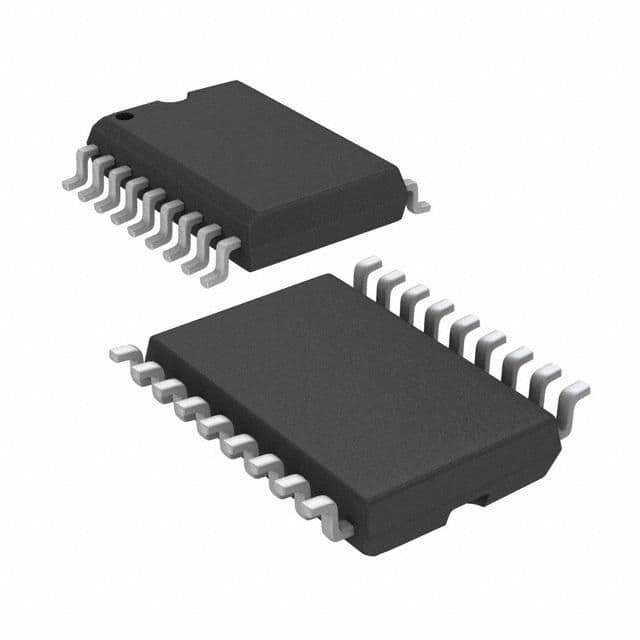

Product Images
