Microchip
DSPIC30F2012-30I/ML
16-BIT, FLASH, 30 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, 0.90 MM HEIGHT, PLASTIC, QFN-28
Frequency30MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2012-30I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
12
Number of Timers/Counters
3
Package Quantity
61
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2012-30I/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F2012-30I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

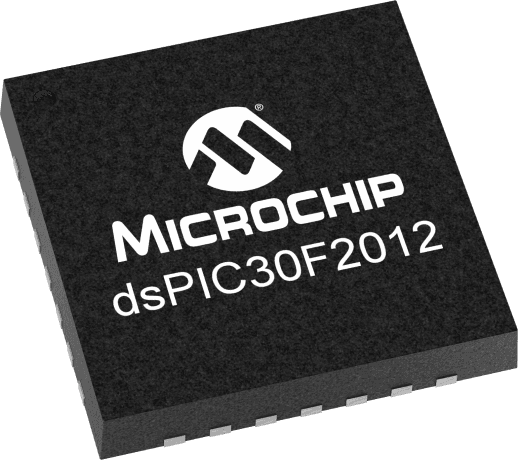

Product Images
