16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH-based MCU offers 12KB of program memory and 1KB of RAM, with integrated I2C, SPI, and UART/USART interfaces. Designed for surface mounting in a 28-pin SOIC package, it supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 2.5V to 5.5V. Includes 3 timers/counters, 20 I/Os (12 programmable), and essential peripherals like PWM, WDT, POR, and Brown-out Detect/Reset.
Frequency30MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2012T-30I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of I/Os
20
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2012T-30I/SO Datasheet
Download the complete datasheet for Microchip DSPIC30F2012T-30I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

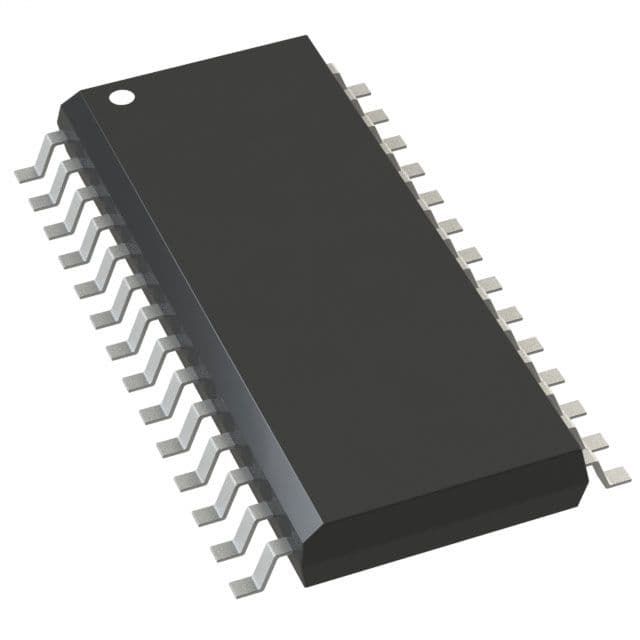

Product Images
