16-bit dsPIC Digital Signal Processor (DSP) microcontroller featuring 30 MIPS performance at 30MHz. Offers 12KB FLASH memory and 512B RAM. Supports I2C, SPI, IrDA, UART, and USART interfaces. Includes 35 programmable I/O pins, 3 timers/counters, and integrated peripherals like PWM and WDT. Operates from 2.7V to 5.8V within a -40°C to +85°C temperature range, packaged in a 44-pin VQFN for surface mounting.
Frequency30MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2023T-30I/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.8V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
35
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip DSPIC30F2023T-30I/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F2023T-30I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

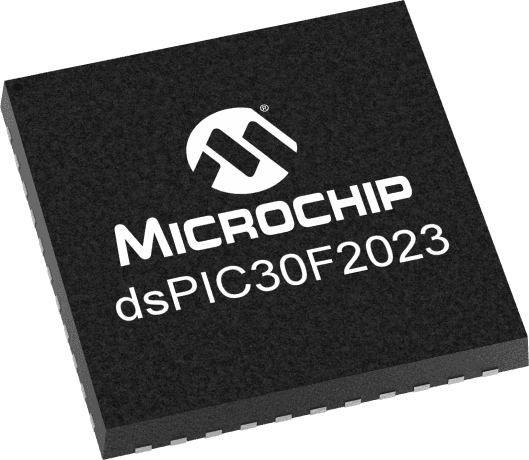

Product Images
