16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory device offers 24KB of program memory and 1KB of RAM. Integrated peripherals include I2C, SPI, and UART interfaces, along with 5 timers/counters and PWM capabilities. Designed for through-hole mounting in a 28-pin DIP package, it operates from 2.5V to 5.5V and supports temperatures from -40°C to 85°C.
Frequency20MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F3010-20I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
24KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole
Number of I/Os
20
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3010-20I/SP Datasheet
Download the complete datasheet for Microchip DSPIC30F3010-20I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

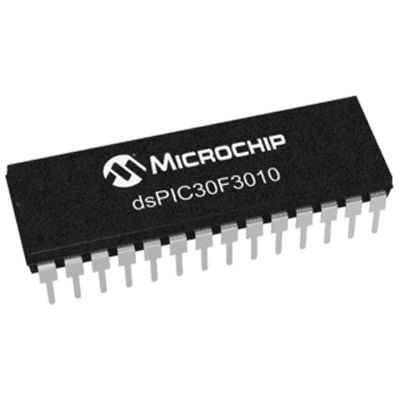

Product Images
