16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 24KB of program memory and 1KB of RAM. Integrated peripherals include I2C, SPI, and UART/USART interfaces. Packaged in a 44-pin TQFP (Thin Quad Flat Pack) for surface mounting, it operates within a temperature range of -40°C to 85°C and supports supply voltages from 2.5V to 5.5V. This RoHS compliant component is supplied on tape and reel.
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F3011T-30I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
30MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Timers/Counters
5
Package Quantity
1200
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3011T-30I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F3011T-30I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

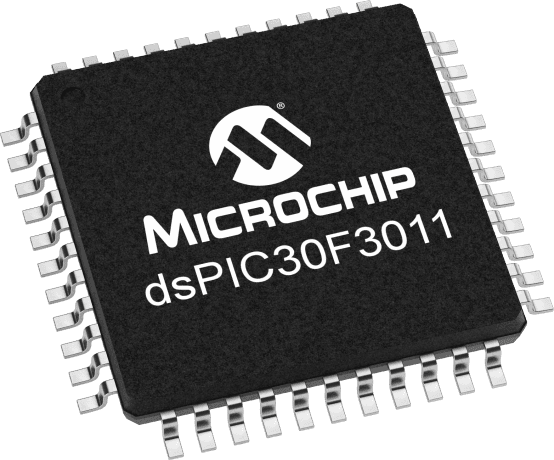

Product Images
