16-bit RISC microcontroller featuring a dsPIC core architecture operating at up to 20MHz. This FLASH memory microcontroller offers 24KB of program memory and 2KB of RAM. Integrated peripherals include I2C, SPI, UART, USART interfaces, along with Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Designed for surface mount applications, it operates within a voltage range of 3V to 5.5V and a temperature range of -40°C to 125°C.
Frequency20MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F3012-20E/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
24KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3012-20E/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F3012-20E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

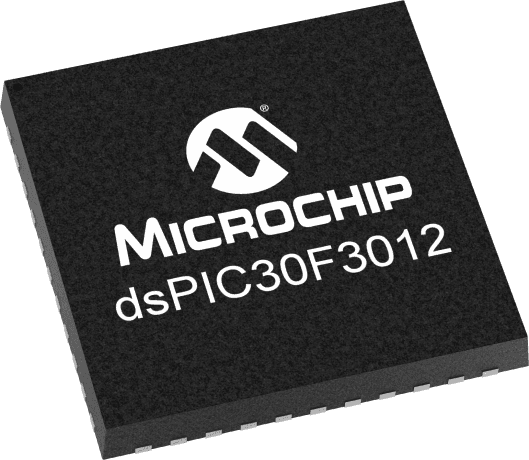

Product Images
