16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory device offers 24KB of program memory and 2KB of RAM, with support for I2C, SPI, and UART/USART interfaces. Equipped with 12 programmable I/O pins and 3 timers/counters, it includes peripherals such as PWM, WDT, and Brown-out Detect/Reset. Designed for through-hole mounting in a PDIP-18 package, it operates from a 3V to 5.5V supply and is RoHS compliant.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F3012-20E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Through Hole
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3012-20E/P Datasheet
Download the complete datasheet for Microchip DSPIC30F3012-20E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

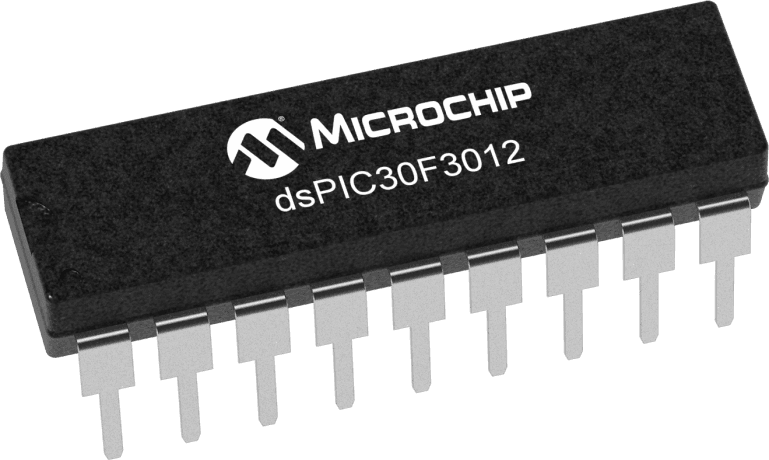

Product Images
