Microchip

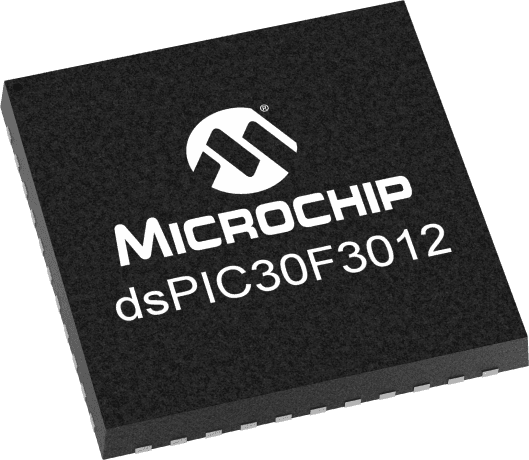

DSPIC30F3012T-20I/ML
16-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC44, 8 X 8 MM, PLASTIC, MO-220, QFN-44
Frequency20MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F3012T-20I/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
24KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3012T-20I/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F3012T-20I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
