16-bit RISC microcontroller featuring a dsPIC core architecture, operating at up to 20MHz. This surface mount device offers 24KB of FLASH memory and 2KB of RAM, with 30 programmable I/O pins and 20 general I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 3 timers/counters, and a watchdog timer. Designed for a wide operating temperature range of -40°C to 85°C, with supply voltage from 2.5V to 5.5V.
Frequency20MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F3013-20I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
24KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of I/Os
20
Number of Programmable I/O
30
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3013-20I/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F3013-20I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

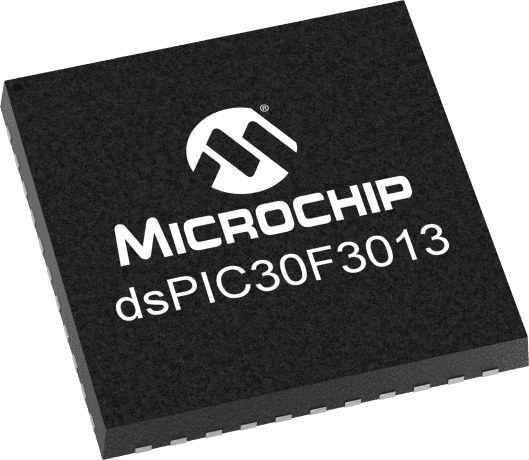

Product Images
