16-bit dsPIC RISC microcontroller featuring 30MHz clock speed and 24KB FLASH memory. Surface mount QFN EP package (8mm x 8mm x 0.95mm) supports I2C, SPI, and dual UART interfaces. Includes 10 ADC channels, 3 timers, and 2KB RAM. Operating temperature range of -40°C to 85°C with supply voltage from 2.5V to 5.5V. Integrated peripherals include PWM, WDT, and POR.
Frequency30MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F3013-30I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Length
8mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
24KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
20
Number of I2C Channels
1
Number of Programmable I/O
30
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3013-30I/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F3013-30I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

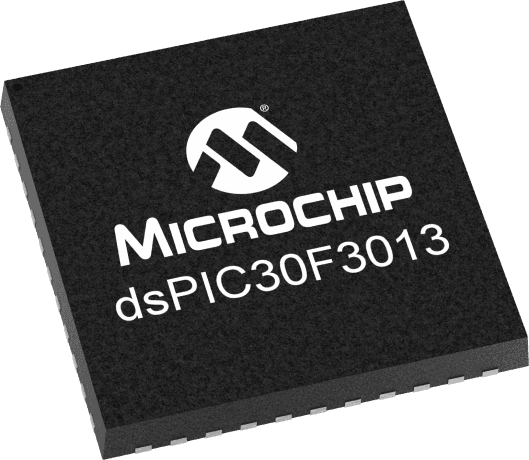

Product Images
