16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 24KB of program memory and 2KB of RAM, with 20 general-purpose I/Os and 30 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART interfaces, 3 timers/counters, and a watchdog timer. Designed for surface mounting in a 28-pin SOIC package, it operates from a 2.5V to 5.5V supply and is RoHS compliant.
Frequency30MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F3013T-30I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
30MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of I/Os
20
Number of Programmable I/O
30
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3013T-30I/SO Datasheet
Download the complete datasheet for Microchip DSPIC30F3013T-30I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

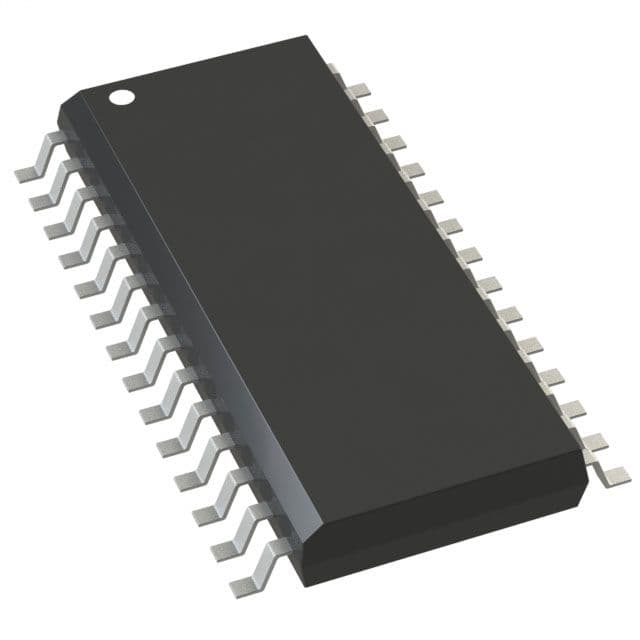

Product Images
