16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory microcontroller offers 24KB of program memory and 2KB of RAM. Integrated peripherals include I2C, SPI, and UART interfaces, along with multiple timers and PWM capabilities. Packaged in a 40-pin PDIP for through-hole mounting, it supports a wide operating temperature range of -40°C to 85°C.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F3014-20I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
24KB
Frequency
20MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
53.2mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
16
Number of I/Os
30
Number of I2C Channels
1
Number of Programmable I/O
30
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
14.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3014-20I/P Datasheet
Download the complete datasheet for Microchip DSPIC30F3014-20I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

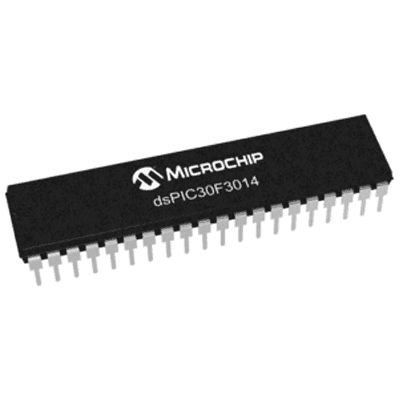

Product Images
