16-bit RISC microcontroller featuring a dsPIC core architecture, operating at up to 20MHz with a maximum frequency of 40MHz. This surface-mount device offers 48KB of FLASH memory and 2KB of RAM, supporting I2C, SPI, UART, USART, and CAN interfaces. Equipped with 30 programmable I/O pins and 5 timers/counters, it includes integrated peripherals such as Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Operating within a 3V to 5.5V supply voltage range, this RoHS compliant component is designed for a wide temperature range of -40°C to 125°C.
Frequency20MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F4011-20E/ML technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | dsPIC |
| Data Bus Width | 16b |
| Frequency | 20MHz |
| Interface | I2C, SPI, UART, USART, CAN |
| Lead Free | Contains Lead |
| Max Frequency | 40MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 48KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Programmable I/O | 30 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 2KB |
| RoHS Compliant | Yes |
| Series | dsPIC™ 30F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip DSPIC30F4011-20E/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F4011-20E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

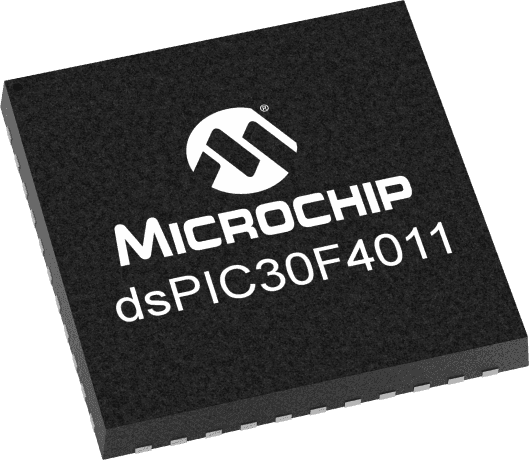

Product Images
