16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 48KB of program memory and 2KB of RAM. Integrated peripherals include I2C, SPI, CAN, UART, and USART interfaces, along with 5 timers/counters, PWM, WDT, Brown-out Detect/Reset, and POR. Designed for surface mounting in a TQFP package, it supports a supply voltage range of 2.5V to 5.5V and operates between -40°C and 85°C.
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F4011T-30I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Contains Lead
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
30
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F4011T-30I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F4011T-30I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

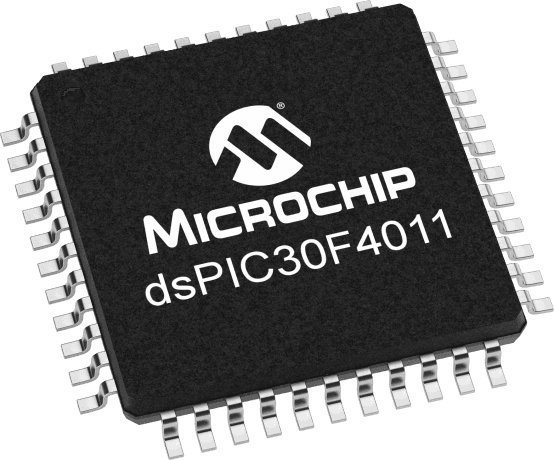

Product Images
