16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This surface-mount device offers 48KB of FLASH program memory and 2KB of RAM. Integrated peripherals include I2C, SPI, UART, USART, CAN, PWM, and a watchdog timer. It supports a supply voltage range of 2.5V to 5.5V and operates within an extended temperature range of -40°C to 85°C. The QFN package provides 30 programmable I/O pins.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F4013-20I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
30
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F4013-20I/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F4013-20I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

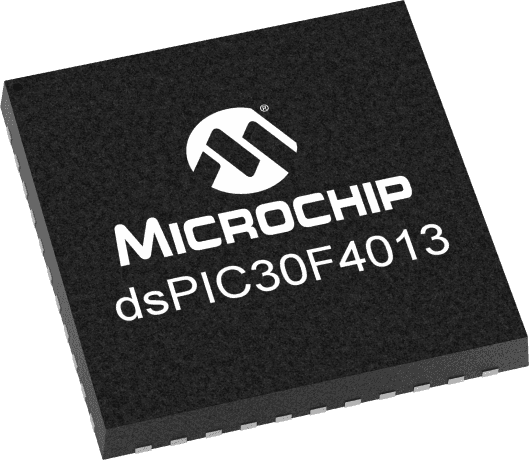

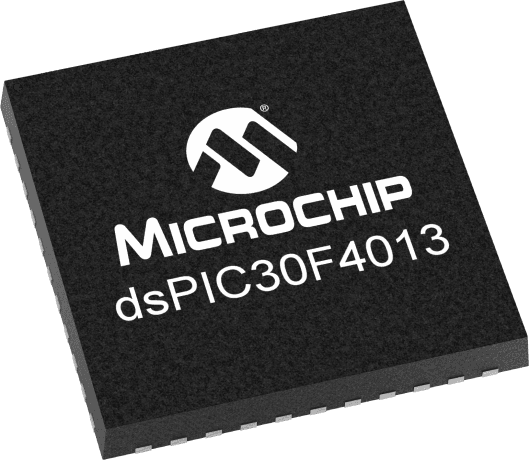

Product Images
