16-bit dsPIC RISC microcontroller featuring 30MHz operation and 48KB FLASH memory. This surface mount device offers 30 programmable I/O pins, 2KB RAM, and integrated peripherals including PWM, WDT, and multiple communication interfaces (I2C, SPI, UART, USART, CAN). Operating from 2.5V to 5.5V, it supports a temperature range of -40°C to 85°C.
Frequency30MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F4013T-30I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Contains Lead
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
30
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F4013T-30I/ML Datasheet
Download the complete datasheet for Microchip DSPIC30F4013T-30I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

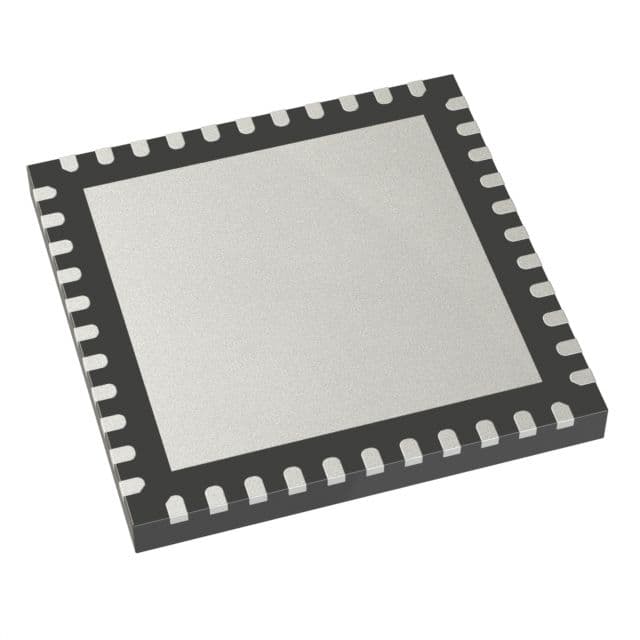

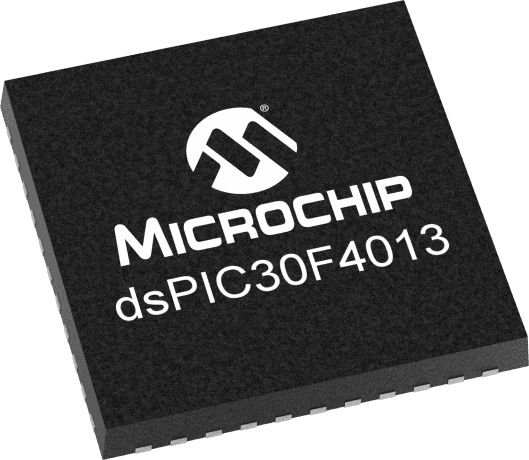

Product Images
