Microchip
DSPIC30F4013T-30I/PT
16-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQFP44, 10 X 10 MM, 1 MM THICKNESS, PLASTIC, TQFP-44
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F4013T-30I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
30MHz
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Contains Lead
Max Frequency
30MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
30
Number of Timers/Counters
5
Package Quantity
1200
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F4013T-30I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F4013T-30I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

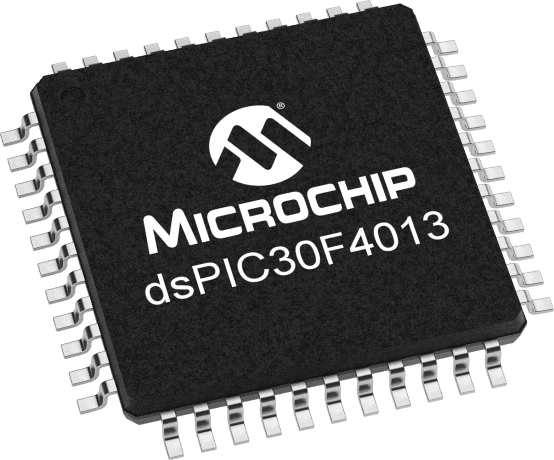

Product Images
