16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory microcontroller offers 66KB of program memory and 4KB of RAM. Equipped with 16 ADC channels and 52 programmable I/Os, it supports I2C, SPI, UART, USART, and CAN interfaces. The device includes 8 PWM channels, 5 timers/counters, and a watchdog timer, with peripherals like Brown-out Detect/Reset and POR. Packaged in a 64-pin TQFP (10x10mm, 1.05mm height) for surface mounting, it operates from 2.5V to 5.5V and has a temperature range of -40°C to 85°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F5011-20I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
66KB
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
10mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
66KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
52
Number of I2C Channels
1
Number of Programmable I/O
52
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F5011-20I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F5011-20I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

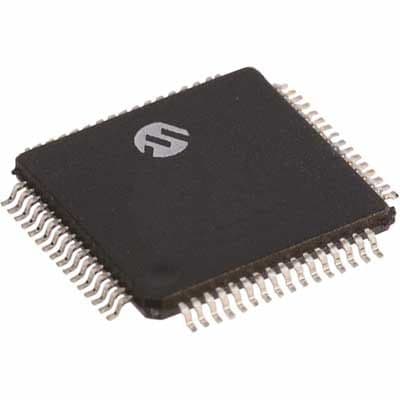

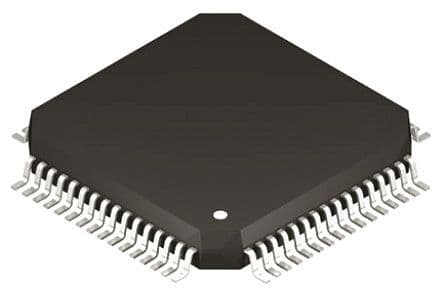

Product Images
