16-bit RISC microcontroller featuring a dsPIC core architecture, operating at 20MHz with a maximum frequency of 40MHz. This surface mount device offers 66KB of FLASH memory and 4KB of RAM, supporting I2C, SPI, CAN, and UART/USART interfaces. With 68 programmable I/O pins and 5 timers/counters, it operates from a 3V to 5.5V supply voltage and is RoHS compliant, suitable for operation between -40°C and 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F5013-20E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
66KB
Frequency
20MHz
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
66KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
68
Number of Programmable I/O
68
Number of Timers/Counters
5
Package Quantity
119
Packaging
Tray
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC30F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F5013-20E/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F5013-20E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

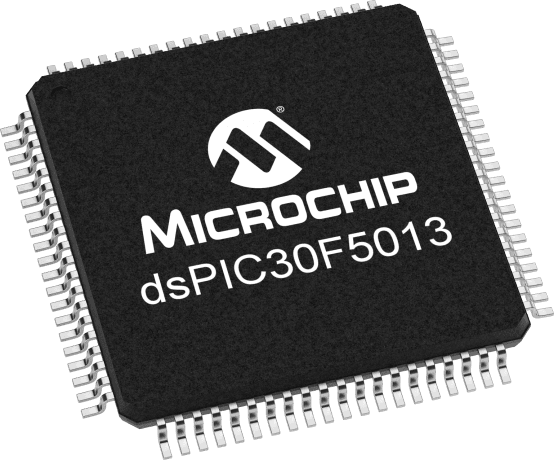

Product Images
