16-bit RISC microcontroller featuring a dsPIC core, operating at 20MHz with a maximum frequency of 40MHz. This FLASH memory microcontroller offers 66KB of program memory and 4KB of RAM. Equipped with I2C, SPI, UART, USART, and CAN interfaces, it supports 68 programmable I/O pins and includes 5 timers/counters. Packaged in a lead-free, RoHS compliant TQFP surface mount package, it operates from 2.7V to 5.8V with a maximum operating temperature of 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F5013T-20E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
125°C
Memory Size
66KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.8V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
68
Number of Timers/Counters
5
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F5013T-20E/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F5013T-20E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

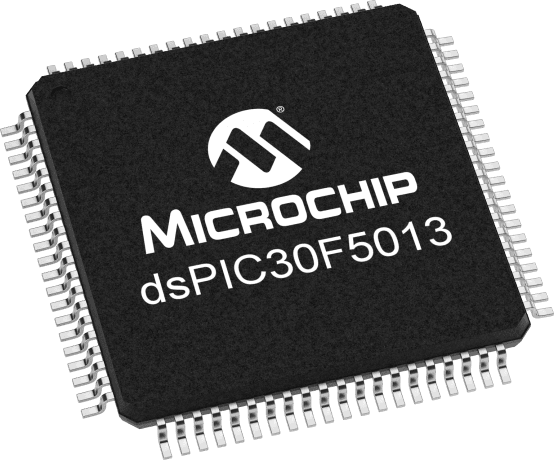

Product Images
