16-bit dsPIC RISC microcontroller featuring 144KB FLASH memory and 8KB RAM. Operates at up to 40MHz with a 20MHz max frequency. Includes 16 analog input channels, 68 programmable I/Os, and multiple communication interfaces (I2C, SPI, UART, USART, CAN). Packaged in a TQFP with 0.65mm lead pitch, suitable for SMD/SMT termination. RoHS compliant and operates within a 2.5V to 5.5V supply voltage range.
Frequency40MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip DSPIC30F6010-20I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
144KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Lead Pitch
0.65mm
Length
14mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
16mm
Series
dsPIC™ 30F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6010-20I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6010-20I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

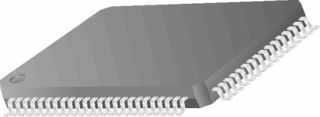

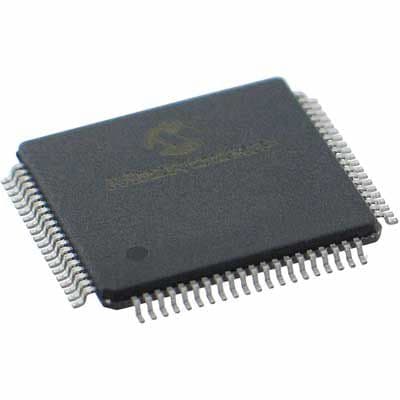

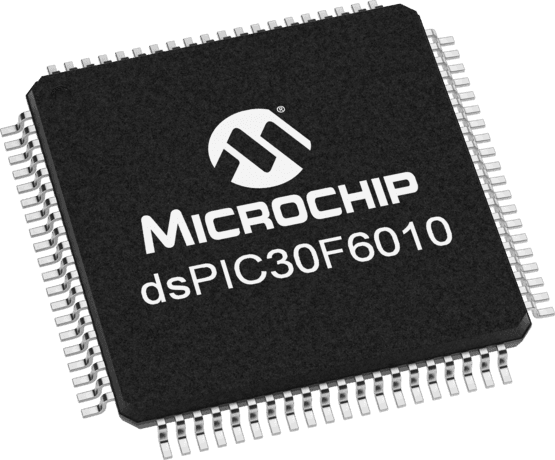

Product Images
