16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 144KB of program memory and 8KB of RAM. Integrated peripherals include I2C, SPI, UART, USART, CAN, PWM, WDT, LVD, and Brown-out Detect/Reset. The device is housed in a TQFP package with 68 programmable I/Os and operates from a 2.5V to 5.5V supply.
Frequency40MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip DSPIC30F6010-30I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
144KB
Frequency
40MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Lead Pitch
0.65mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of I/Os
68
Number of Programmable I/O
68
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
16mm
Series
dsPIC™ 30F
Termination
SMD/SMT
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6010-30I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6010-30I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

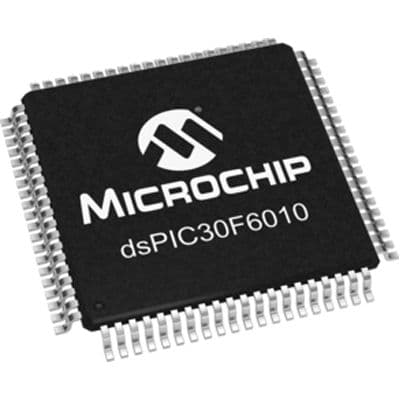

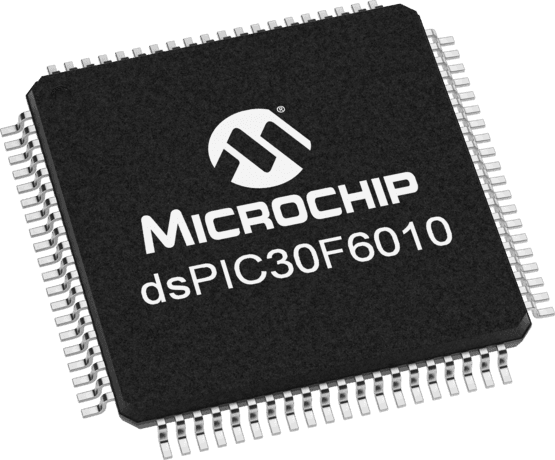

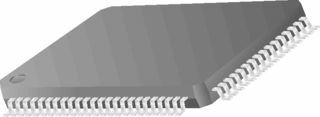

Product Images
