16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory MCU offers 144KB of program memory and 8KB of RAM. Integrated peripherals include 16 ADC channels, 8 PWM channels, 5 timers, 2 SPI channels, 2 UART channels, 1 I2C channel, and 1 USB channel. Packaged in a lead-free TQFP with 68 programmable I/O pins, it supports surface mounting and operates from 3V to 5.5V over an extended temperature range of -40°C to 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6010A-20E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
12mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
16
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6010A-20E/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F6010A-20E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

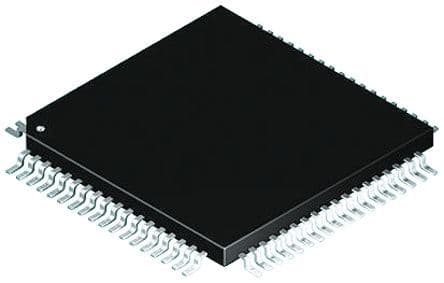

Product Images
