16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory microcontroller offers 132KB of program memory and 6KB of RAM. Equipped with 52 programmable I/Os, it supports I2C, SPI, UART, USART, and CAN interfaces. The TQFP package with 0.65mm lead pitch is suitable for SMD/SMT termination. Operating voltage ranges from 2.5V to 5.5V, with an extended temperature range of -40°C to 85°C.
Frequency20Hz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip DSPIC30F6011-20I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
132KB
Frequency
20Hz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Lead Pitch
0.65mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
132KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Number of I/Os
52
Number of Programmable I/O
52
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
6KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
16mm
Series
dsPIC™ 30F
Termination
SMD/SMT
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6011-20I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6011-20I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

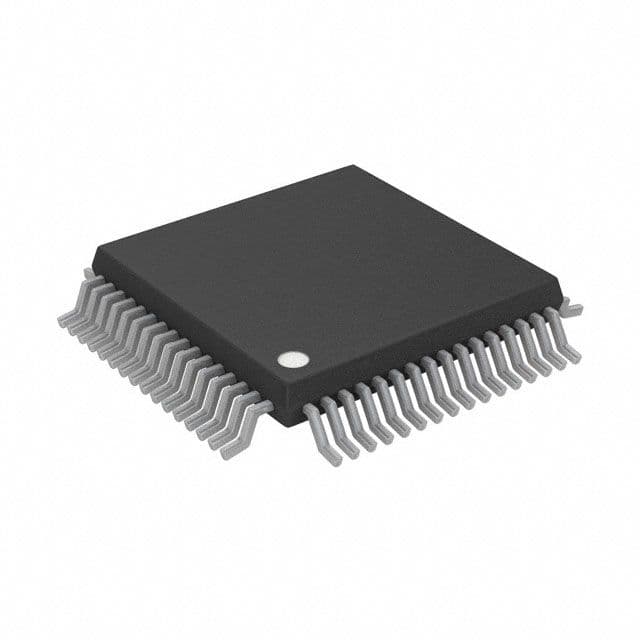

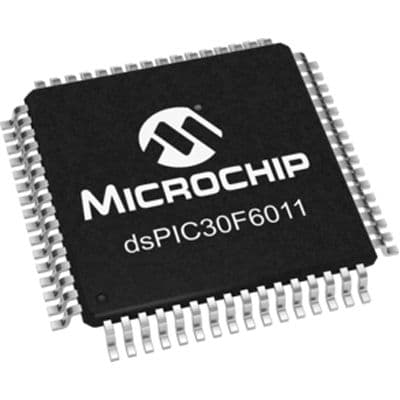

Product Images
