16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 132KB of program memory and 6KB of RAM. Equipped with I2C, SPI, UART, USART, and CAN interfaces, it provides 52 programmable I/O pins. The TQFP package with a 0.65mm lead pitch is suitable for SMD/SMT termination, operating within a 2.5V to 5.5V supply range and an extended temperature range of -40°C to 85°C.
Frequency30MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip DSPIC30F6011-30I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
132KB
Frequency
30MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Pitch
0.65mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
132KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of I/Os
52
Number of Programmable I/O
52
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
6KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
16mm
Series
dsPIC™ 30F
Termination
SMD/SMT
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6011-30I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6011-30I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

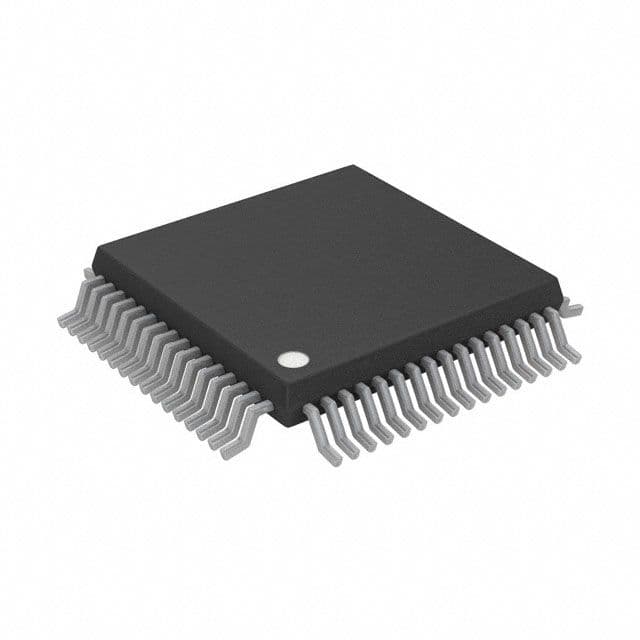

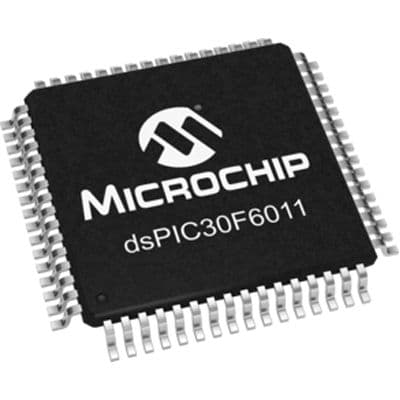

Product Images
