16-bit RISC microcontroller featuring a dsPIC core, operating at 30MHz with 132KB of FLASH memory and 6KB of RAM. This surface-mount microcontroller offers 52 programmable I/O pins, 16 ADC channels, and integrated peripherals including I2C, SPI, UART, USART, CAN, PWM, and a watchdog timer. Designed for a 2.5V to 5.5V operating supply voltage, it is housed in a 64-pin TQFP package with dimensions of 14mm x 14mm x 1.05mm and an operating temperature range of -40°C to 85°C.
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6011A-30I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
132KB
Frequency
30MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
14mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
132KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
52
Number of I2C Channels
1
Number of Programmable I/O
52
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
6KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6011A-30I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6011A-30I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

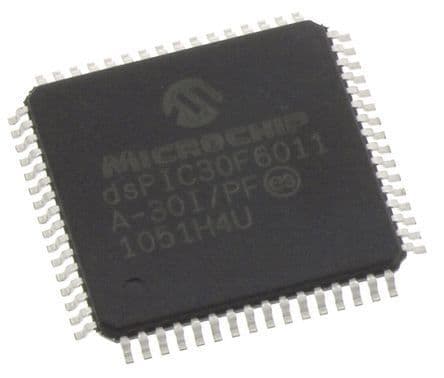

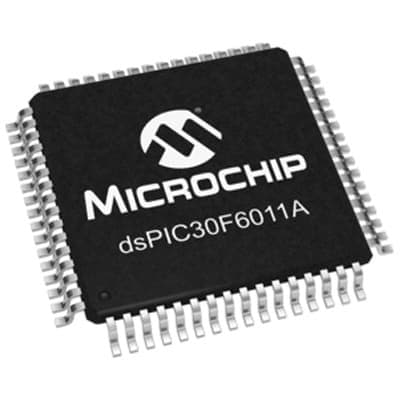

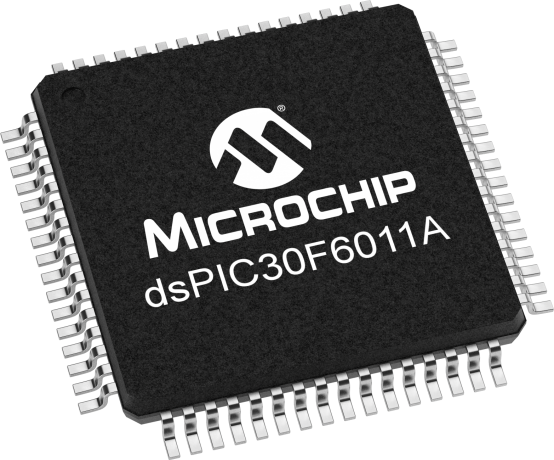

Product Images
