16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz with 132KB of FLASH memory and 6KB of RAM. This surface-mount device offers 52 programmable I/O pins and supports multiple interfaces including I2C, SPI, CAN, and UART. Integrated peripherals include a watchdog timer, PWM, and multiple timers/counters, with an operating temperature range of -40°C to 85°C. The TQFP package measures 10mm x 10mm with a 1.05mm height and is lead-free and RoHS compliant.
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6011A-30I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
132KB
Frequency
30MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
132KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
52
Number of I2C Channels
1
Number of Programmable I/O
52
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
6KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC30F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6011A-30I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F6011A-30I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

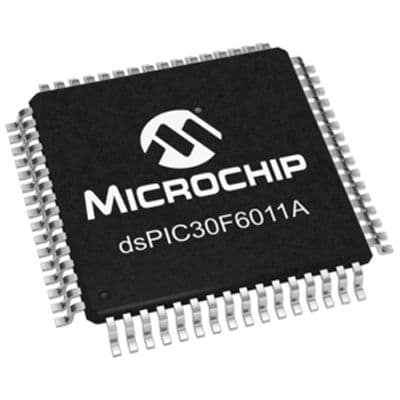

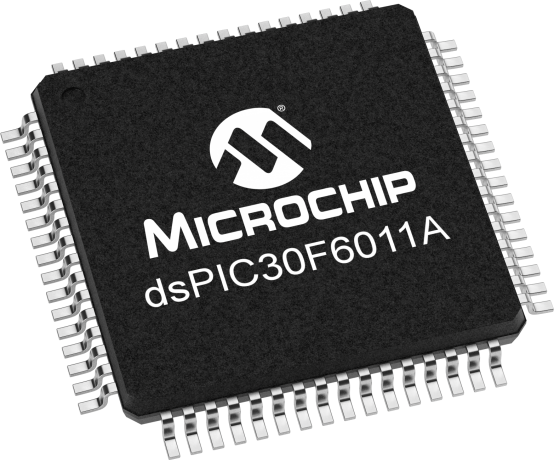

Product Images
