Microchip
DSPIC30F6013-20I/PF
16-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQFP80, 14 X 14 MM, 1MM HEIGHT, PLASTIC, MS-026, TQFP-80
Frequency20MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip DSPIC30F6013-20I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Interface
I2C, SPI, UART, USART, CAN
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
132KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of Programmable I/O
68
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
6KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6013-20I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6013-20I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

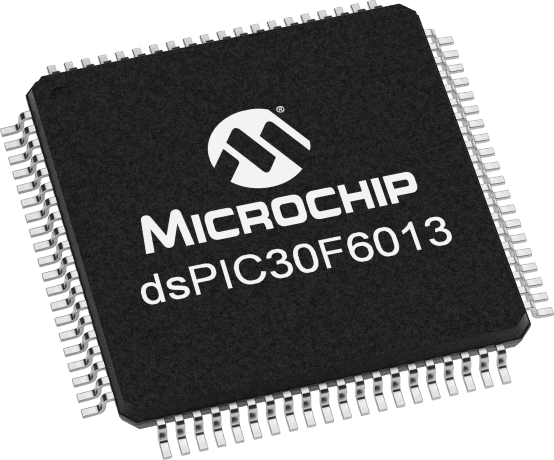

Product Images
