16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 144KB of program memory and 8KB of RAM. It supports I2C, SPI, UART, USART, and CAN interfaces, with 16 analog-to-digital converter channels and 68 programmable I/Os. Packaged in a 80-pin TQFP with a 0.65mm lead pitch, this lead-free component operates from 2.5V to 5.5V and is RoHS compliant.
Frequency30MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip DSPIC30F6014-30I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
144KB
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Lead Pitch
0.65mm
Length
14mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
144KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Number of ADC Channels
16
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
16mm
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6014-30I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6014-30I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

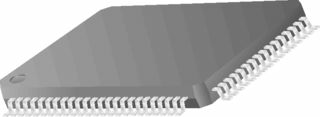

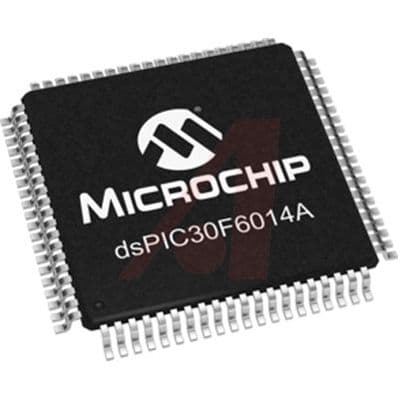

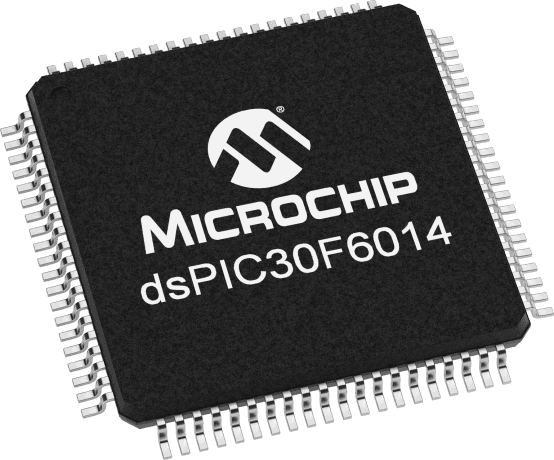

Product Images
