16-bit RISC microcontroller featuring a dsPIC core architecture, operating at up to 20MHz. This surface-mount device offers 144KB of FLASH memory and 8KB of RAM, with 68 programmable I/O pins. Integrated peripherals include 16 ADC channels, 8 PWM channels, 5 timers/counters, and multiple communication interfaces such as I2C, SPI, UART, USART, and USB. Packaged in a TQFP form factor, it supports a supply voltage range of 3V to 5.5V and operates across an industrial temperature range of -40°C to 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6014A-20E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
144KB
Frequency
20MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
12mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6014A-20E/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F6014A-20E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

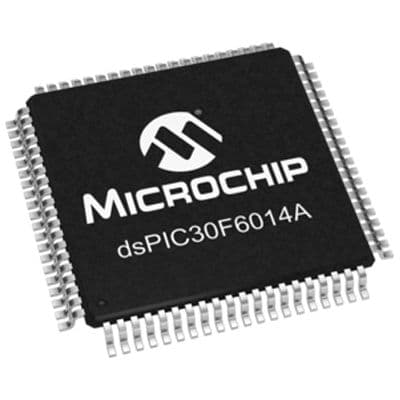

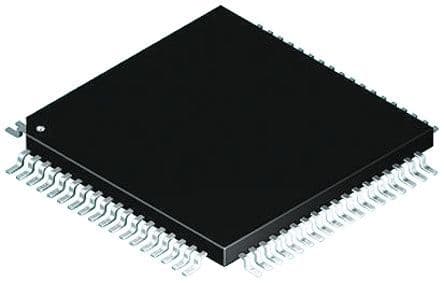

Product Images
