16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This surface-mount device offers 144KB of FLASH memory and 8KB of RAM. Integrated peripherals include multiple I2C, SPI, and UART/USART interfaces, along with 8 PWM channels and 16 ADC channels. The TQFP package measures 14mm x 14mm with a 0.65mm lead pitch and a height of 1.05mm, supporting a wide operating temperature range of -40°C to 85°C.
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6014A-30I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
144KB
Frequency
30MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Lead Pitch
0.65mm
Length
14mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6014A-30I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6014A-30I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

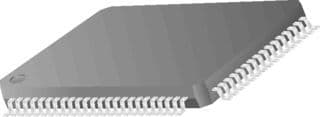

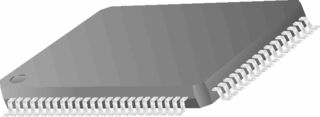

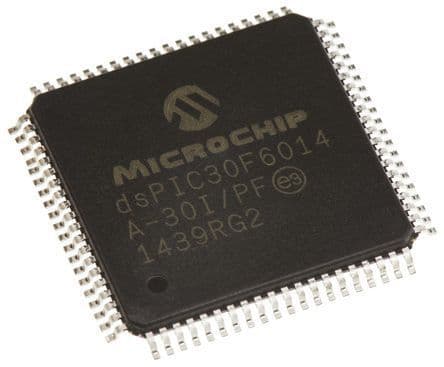

Product Images
