16-bit dsPIC™ microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at up to 60MHz with a 16-bit address and data bus. Includes 21 programmable I/Os, 6 ADC channels, 6 PWM channels, and multiple communication interfaces including I2C, SPI, UART, and CAN. Packaged in a 6x6mm QFN with a height of 0.95mm, this RoHS compliant microcontroller operates from 3V to 3.6V.
Frequency60MHz
PackageQFN
Current16mA
Quick Jump:
Technical Specifications
Microchip DSPIC33EP128MC502-I/MM technical specifications.
General
Address Bus Width
16b
Package/Case
QFN
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART, CAN
Length
6mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of ADC Channels
6
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Supply Current
16mA
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP128MC502-I/MM Datasheet
Download the complete datasheet for Microchip DSPIC33EP128MC502-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

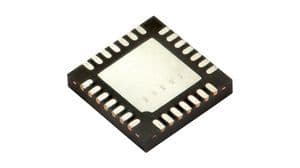

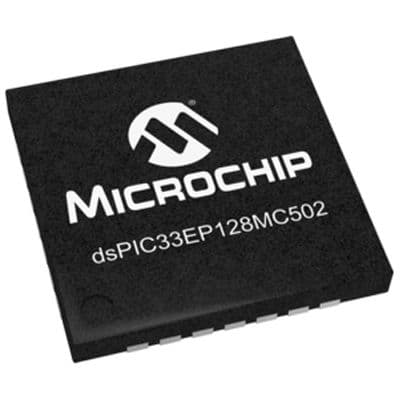

Product Images
