16-bit dsPIC™ microcontroller featuring 256KB FLASH memory and 28KB RAM. Operates at 60MHz with a 16-bit data bus width. Offers 83 I/Os, 32 ADC channels, 12 PWM channels, and multiple communication interfaces including I2C, SPI, USB, and CAN. Packaged in a 121-pin TFBGA with an operating temperature range of -40°C to 85°C.
Frequency60MHz
PackageTFBGA
Quick Jump:
Technical Specifications
Microchip DSPIC33EP256MU810-I/BG technical specifications.
General
Package/Case
TFBGA
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
60MHz
Height
1.2mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Number of A/D Converters
2
Number of ADC Channels
32
Number of Bits
16
Number of I/Os
83
Number of I2C Channels
2
Number of PWM Channels
12
Number of SPI Channels
4
Number of Timers/Counters
9
Number of UART Channels
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
28KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP256MU810-I/BG Datasheet
Download the complete datasheet for Microchip DSPIC33EP256MU810-I/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

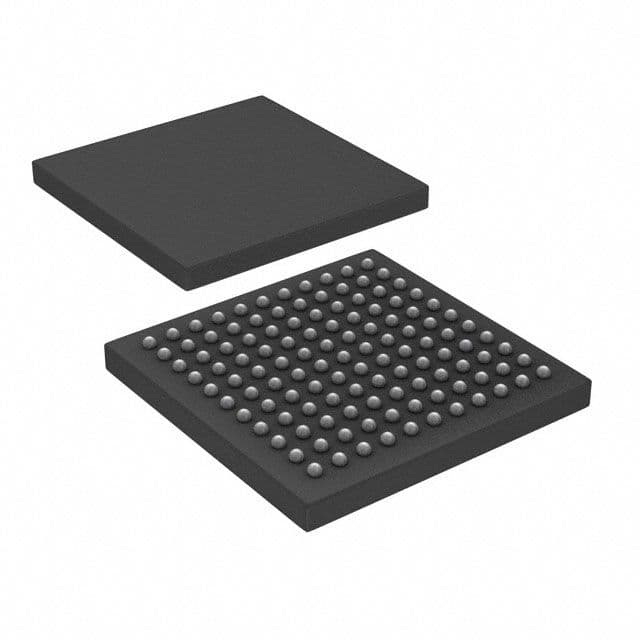

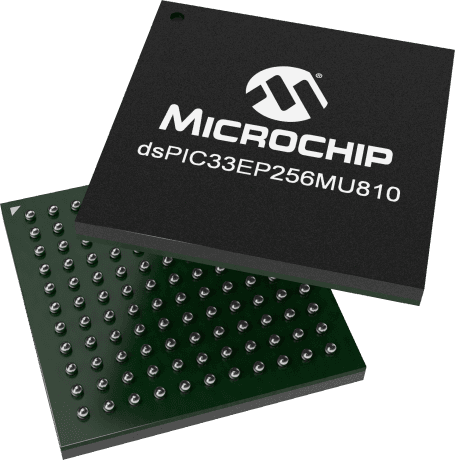

Product Images
