16-bit dsPIC™ microcontroller featuring 512KB FLASH memory and 48KB RAM. Operates at up to 70MHz with a 16-bit address and data bus. Offers 85 programmable I/Os, 49 ADC channels, and multiple communication interfaces including I2C (2 channels), SPI (3 channels), UART (4 channels), and USB (1 channel). Includes 12 PWM channels and 13 timers/counters. Packaged in a 121-pin TFBGA with a temperature range of -40°C to 85°C.
Frequency70MHz
PackageTFBGA
Current11mA
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512GM310-I/BG technical specifications.
General
Address Bus Width
16b
Package/Case
TFBGA
Core Architecture
dsPIC
Data Bus Width
16b
Density
512KB
Frequency
70MHz
Height
0.85mm
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of ADC Channels
49
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of PWM Channels
12
Number of SPI Channels
3
Number of Timers/Counters
13
Number of UART Channels
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Supply Current
11mA
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512GM310-I/BG Datasheet
Download the complete datasheet for Microchip DSPIC33EP512GM310-I/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

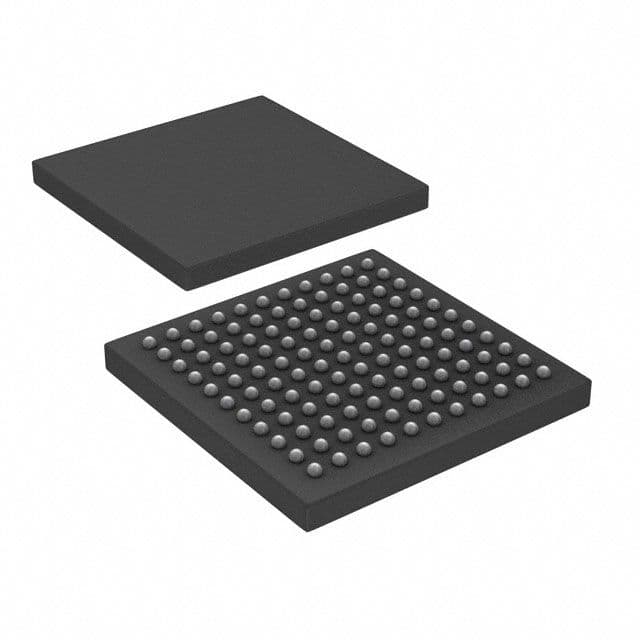

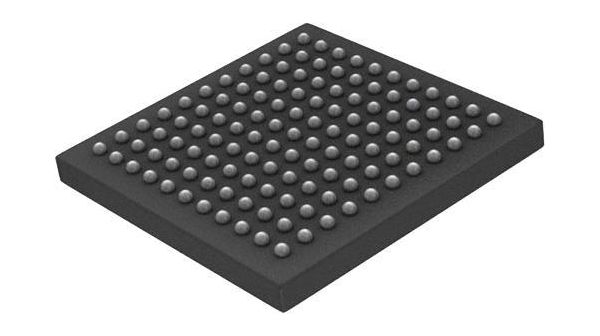

Product Images
