16-bit dsPIC™ 33EP microcontroller featuring a 60MHz core speed and 512KB FLASH memory. Offers 49 ADC channels, 85 programmable I/Os, and extensive peripherals including 12 PWM channels, 2 I2C, 3 SPI, and 4 UART interfaces. Operates within a 3V to 3.6V supply voltage range, with an operating temperature range of -40°C to 85°C. Packaged in a 100-pin TQFP.
Frequency60MHz
PackageTQFP
Current11mA
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512GM310-I/PF technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
512KB
Height
1.05mm
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
14mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of ADC Channels
49
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of PWM Channels
12
Number of SPI Channels
3
Number of Timers/Counters
13
Number of UART Channels
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Supply Current
11mA
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512GM310-I/PF Datasheet
Download the complete datasheet for Microchip DSPIC33EP512GM310-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

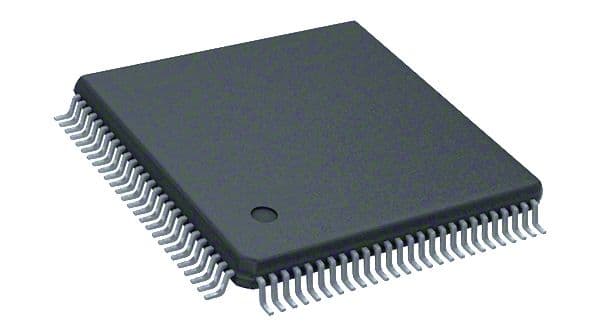

Product Images
