16-bit dsPIC™ microcontroller featuring 512KB FLASH memory and 48KB RAM. Operates at up to 60MHz with a 16-bit address and data bus. Offers extensive peripherals including 18 ADC channels, 12 PWM channels, 2 I2C, 3 SPI, and 4 UART interfaces, plus a USB channel. Packaged in a 44-pin QFN with a temperature range of -40°C to 85°C and a supply voltage of 3V to 3.6V.
Frequency60MHz
PackageQFN
Current11mA
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512GM604-I/ML technical specifications.
General
Address Bus Width
16b
Package/Case
QFN
Core Architecture
dsPIC
Data Bus Width
16b
Density
512KB
Height
0.95mm
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
8mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of ADC Channels
18
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
35
Number of PWM Channels
12
Number of SPI Channels
3
Number of Timers/Counters
13
Number of UART Channels
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Supply Current
11mA
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512GM604-I/ML Datasheet
Download the complete datasheet for Microchip DSPIC33EP512GM604-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

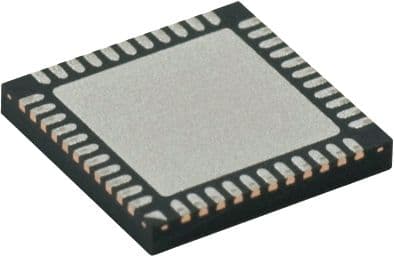

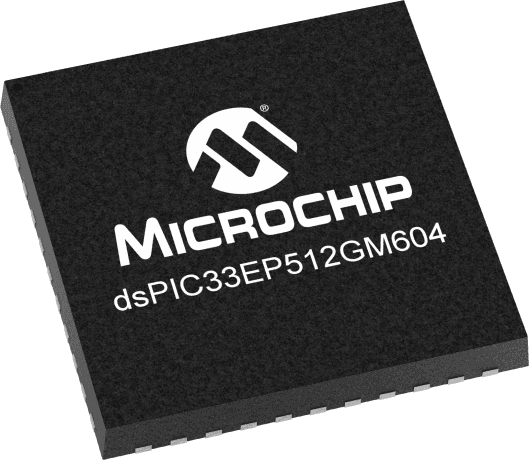

Product Images
