16-bit dsPIC microcontroller featuring a 70MHz core frequency and 512KB FLASH memory. Offers 49 ADC channels, 85 programmable I/Os, and 13 timers/counters. Supports I2C, SPI, and UART interfaces. Operates within a 3V to 3.6V supply voltage range and a -40°C to 85°C temperature range. Packaged in a TQFP tray.
Frequency70MHz
PackageTQFP
Current11mA
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512GM710-I/PF technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
512KB
Frequency
70MHz
Interface
I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of ADC Channels
49
Number of I/Os
85
Number of Programmable I/O
85
Number of Timers/Counters
13
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
70 MIPs
Supply Current
11mA
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512GM710-I/PF Datasheet
Download the complete datasheet for Microchip DSPIC33EP512GM710-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

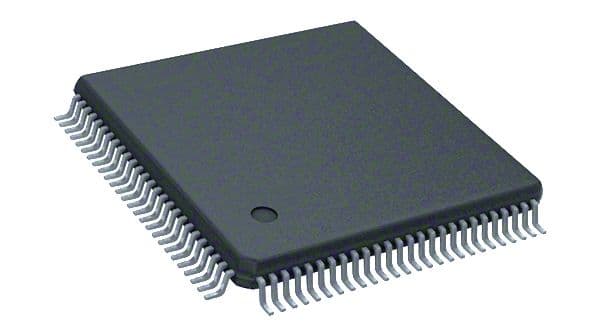

Product Images
