DSPIC33EP512MC202-I/SO
16-bit dsPIC MCU, 512KB Flash, 48KB RAM, SOIC, 21 I/O, I2C, SPI, CAN, UART
16-bit dsPIC™ 33EP microcontroller featuring 512KB FLASH memory and 48KB RAM. Surface mountable in a SOIC package, this MCU operates from 3V to 3.6V with a maximum frequency of 5.5MHz. Integrated peripherals include 12 ADC channels, 6 PWM channels, 2 I2C channels, 2 SPI channels, 2 UART channels, and 1 USB channel. Supports I2C, SPI, CAN, UART, IrDA, and USART interfaces, with 21 programmable I/Os.
Frequency5.5MHz
PackageSOIC
Current30uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512MC202-I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Height
2.35mm
Interface
I2C, SPI, CAN, UART, IrDA, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
5.5MHz
Max Operating Temperature
85°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
12
Number of UART Channels
2
Number of USB Channels
1
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Supply Current
30uA
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512MC202-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33EP512MC202-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

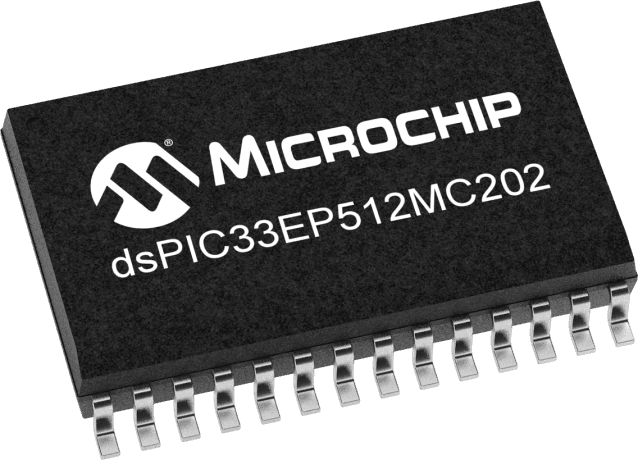

Product Images
