16-bit dsPIC microcontroller featuring 512KB FLASH memory and 52KB RAM. Operates at up to 60MHz with 53 programmable I/O pins. Includes I2C, SPI, UART, USART, CAN, and IrDA interfaces. Offers 9 timers/counters and peripherals like PWM, WDT, and DMA. Designed for surface mount with a VQFN package, operating from 2.95V to 3.6V, and rated for automotive applications up to 125°C.
Frequency60MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip dsPIC33EP512MC806T-E/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, IrDA, UART, USART, CAN
Max Frequency
60MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of Programmable I/O
53
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
52KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip dsPIC33EP512MC806T-E/MR Datasheet
Download the complete datasheet for Microchip dsPIC33EP512MC806T-E/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

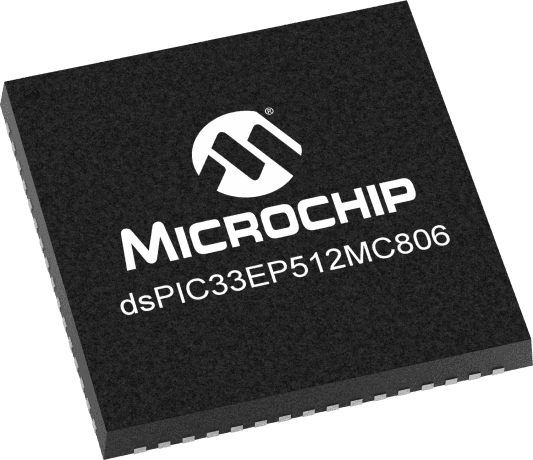

Product Images
