16-bit dsPIC microcontroller featuring 512KB FLASH memory and 52KB RAM. Operates at up to 60MHz with an internal oscillator. Offers 53 programmable I/O pins and supports I2C, SPI, UART, USART, CAN, and IrDA interfaces. Includes 9 timers/counters and peripherals such as PWM, WDT, DMA, Brown-out Detect/Reset, and POR. Packaged in a VQFN surface mount tape and reel, with an operating temperature range of -40°C to 85°C and a supply voltage of 2.95V to 3.6V.
Frequency60MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512MC806T-I/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, IrDA, UART, USART, CAN
Max Frequency
60MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of Programmable I/O
53
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
52KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512MC806T-I/MR Datasheet
Download the complete datasheet for Microchip DSPIC33EP512MC806T-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

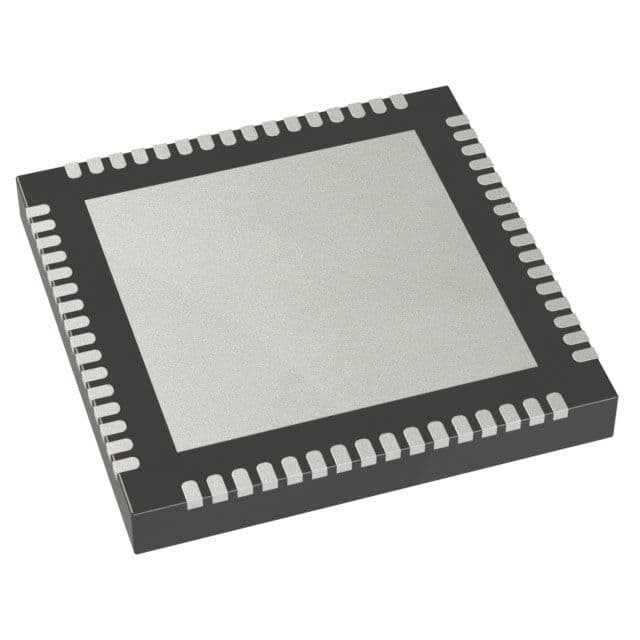

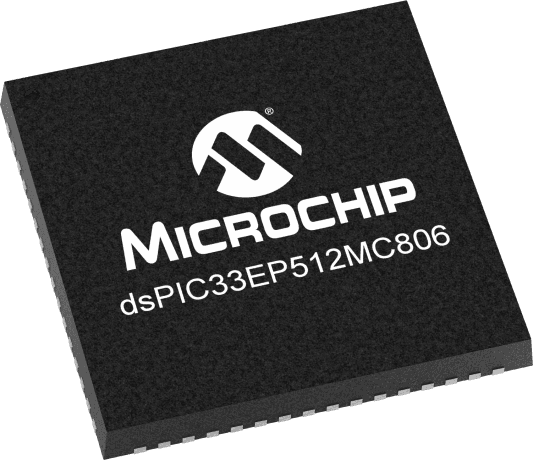

Product Images
