60MHz 16-bit dsPIC microcontroller featuring 512KB FLASH memory and 52KB RAM. This LQFP packaged MCU offers 122 I/Os, 9 timers/counters, and supports I2C, SPI, USB, IrDA, UART, USART, and CAN interfaces. Operating voltage ranges from 2.95V to 3.6V with an internal oscillator. Includes peripherals like PWM, WDT, DMA, and brown-out detection. Designed for automotive applications with AEC-Q100 qualification, operating from -40°C to 125°C.
Frequency60MHz
PackageLQFP
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512MU814-E/PL technical specifications.
General
Package/Case
LQFP
Core Architecture
dsPIC
Frequency
60MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Operating Temperature
125°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.95V
Number of I/Os
122
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
52KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33EP
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512MU814-E/PL Datasheet
Download the complete datasheet for Microchip DSPIC33EP512MU814-E/PL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

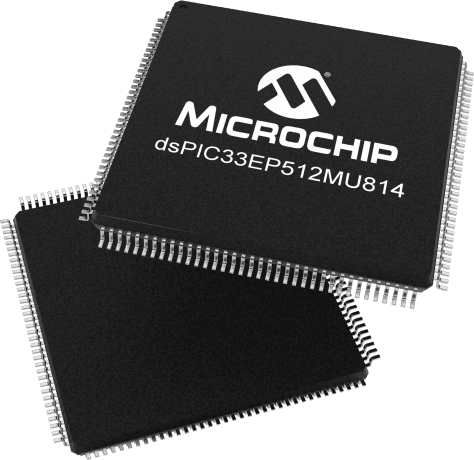

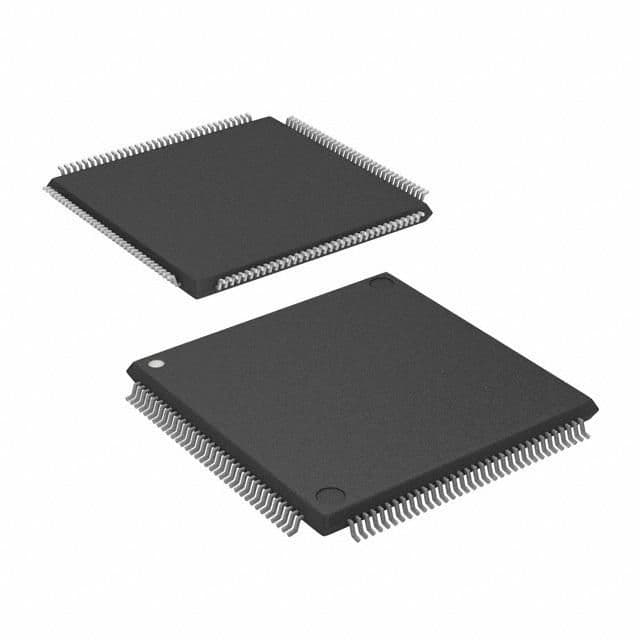

Product Images
