Microchip
DSPIC33EP64GP502-I/MM
16-BIT, FLASH, 70 MHz, MICROCONTROLLER, PQCC28, 6 X 6 MM, 0.90 MM HEIGHT, 0.65 MM PITCH, LEAD FREE, PLASTIC, QFN-28
Frequency70MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip DSPIC33EP64GP502-I/MM technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
70MHz
Interface
I2C, SPI, IrDA, UART, USART, CAN
Max Frequency
70MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP64GP502-I/MM Datasheet
Download the complete datasheet for Microchip DSPIC33EP64GP502-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

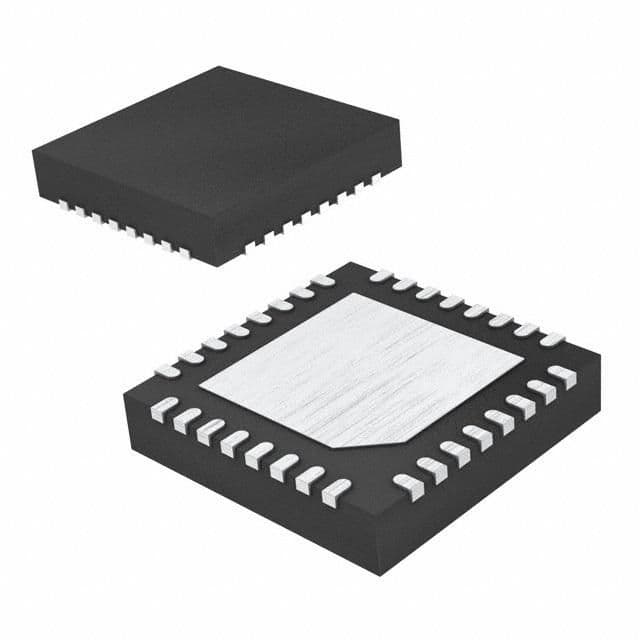

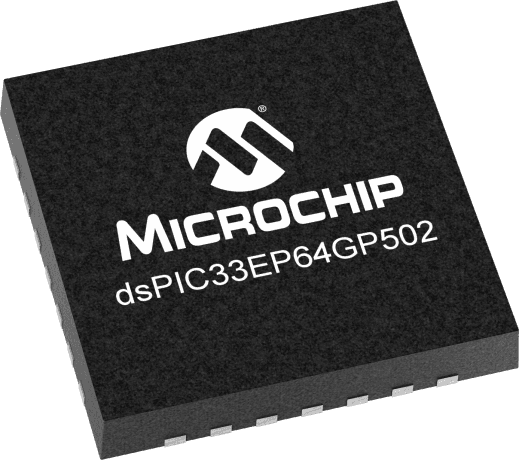

Product Images
