Microchip

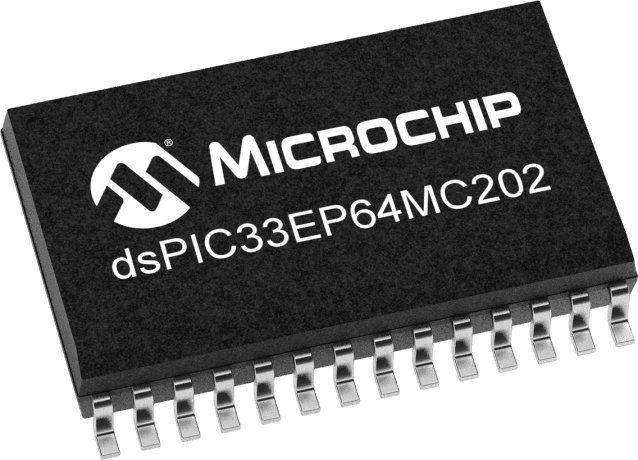

DSPIC33EP64MC202-E/SO
16-BIT, FLASH, 60 MHz, MICROCONTROLLER, PDSO28, 17.90 X 7.50 MM, 2.05 MM HEIGHT, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOIC-28
Frequency60MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip DSPIC33EP64MC202-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
60MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP64MC202-E/SO Datasheet
Download the complete datasheet for Microchip DSPIC33EP64MC202-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
