16-bit dsPIC microcontroller featuring a 60MHz core, 64KB FLASH memory, and 8KB RAM. This through-hole component offers 21 programmable I/O pins and supports I2C, SPI, IrDA, UART, and USART interfaces. Operating from 2.95V to 3.6V, it includes essential peripherals like PWM, WDT, DMA, and brown-out detection. Designed for a wide temperature range of -40°C to 125°C, this RoHS compliant microcontroller is suitable for automotive applications.
Frequency60MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33EP64MC202-E/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
60MHz
Max Operating Temperature
125°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.95V
Mount
Through Hole
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP64MC202-E/SP Datasheet
Download the complete datasheet for Microchip DSPIC33EP64MC202-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

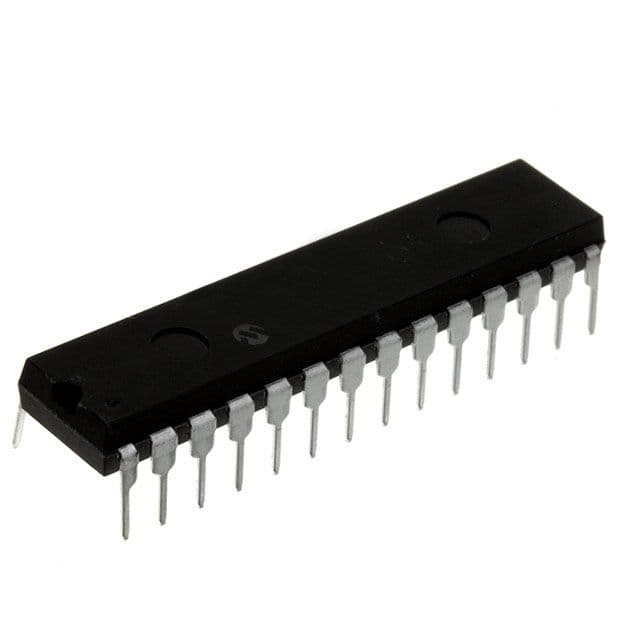

Product Images
