16-bit dsPIC microcontroller featuring a 70MHz core frequency and 64KB FLASH memory. This microcontroller offers 21 programmable I/Os, 6 PWM channels, and 2 I2C, 2 SPI, and 2 UART interfaces. Operating from 2.95V to 3.6V, it includes peripherals such as Brown-out Detect/Reset, POR, WDT, and DMA. Packaged in a 6x6mm VQFN with a 0.95mm height, it supports an operating temperature range of -40°C to 85°C.
Frequency70MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip DSPIC33EP64MC202-I/MM technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
70MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
70MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Number of ADC Channels
6
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP64MC202-I/MM Datasheet
Download the complete datasheet for Microchip DSPIC33EP64MC202-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

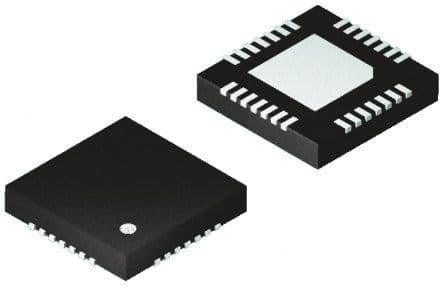

Product Images
