16-bit dsPIC microcontroller featuring a 70MHz core frequency and 64KB FLASH memory. This surface mount device offers 8KB RAM, 53 programmable I/O pins, and 5 timers/counters. Integrated peripherals include I2C, SPI, UART, USART, PWM, DMA, and a watchdog timer. Operating voltage ranges from 2.95V to 3.6V, with an operating temperature range of -40°C to 85°C.
Frequency70MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33EP64MC206T-I/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
70MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
70MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of Programmable I/O
53
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP64MC206T-I/MR Datasheet
Download the complete datasheet for Microchip DSPIC33EP64MC206T-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

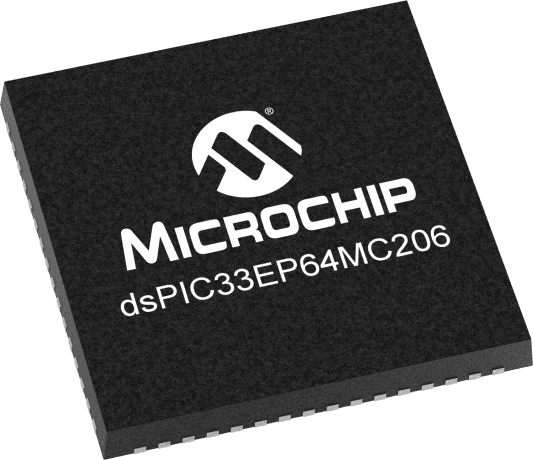

Product Images
